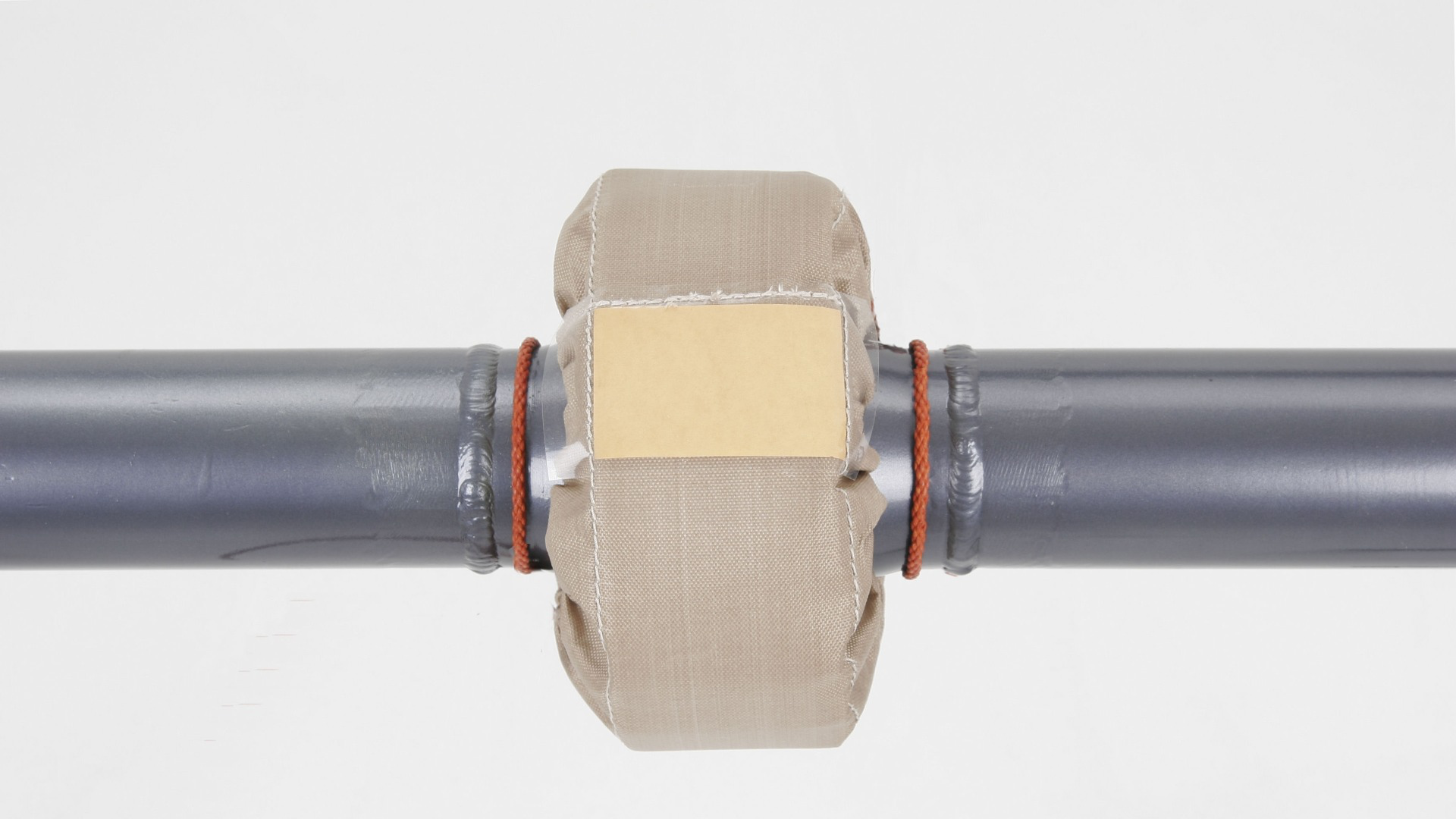

HP SOLID FABRIC PROTECTORS
FOR FLANGE GUARDS, VALVE SHIELD, EXPANSION JOINT SHIELD AND FITTING SHIELD.
SAFETY SHIELDS TYPE CT
FOR FLANGE GUARDS, VALVE SHIELD, EXPANSION JOINT SHIELD AND FITTING SHIELD.
• Transparent Clear center strip allows for complete visual inspection.
• Fire and tear resistant.
• Optional 1/2″ diameter PTFE drain nipple.
• Maximum operating Temperature of 400° F/232°C.
A) FLANGE GUARDS.
B) VALVE SHIELD.
C) EXPANSION JOINT SHIELD.
D) FITTING SHIELD.
Safety shields type PT
FOR FLANGE GUARDS AND VALVE SHIELD.
• Maximum for extreme service and long life.
• 3-ply multi-layered construction.
• ETFE coated fiberglass thread and draw cord.
• Standard Leak indicating patch.
• Fire and tear resistant.
• Maximum operating temperature of 450° F/232°C.
A) FLANGE GUARDS.
B) VALVE SHIELD.
Safety shields type ST
FOR FLANGE GUARDS AND VALVE SHIELD.
• ETFE coated fiberglass cloth.
• Reinforced, 3-ply construction.
• Insert in center provides fourth protective layer.
• ETFE coated or Nomex® thread and PTFE draw cord.
• Standard Leak indicating patch.
• Fire resistant.
• Maximum operating temperature of 450° F/232°C.
A) FLANGE GUARDS.
B) VALVE SHIELD.
Safety shields type PV
FOR FLANGE GUARDS, VALVE SHIELD AND EXPANSION JOINT SHIELD.
• Reinforced polyvinyl chloride fabric.
• 3-ply multi-layered construction.
• Polyester thread and draw cord.
• Available colors: orange, yellow, red and clear.
• Standard leak indicating patch.
• Maximum operating temperature of 170° F/76°C.
A) FLANGE GUARDS.
B) VALVE SHIELD.
C) EXPANSION JOINT SHIELD.
